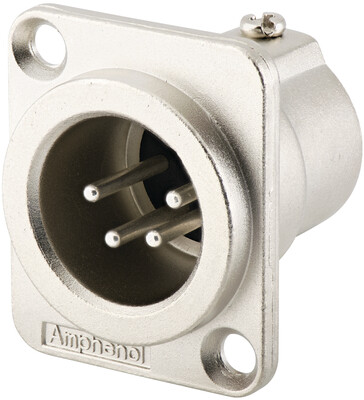

AC4MDZ
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description
AMPHENOL - AC4MDZ - STECKER,XLR,PANEL,VEREINT,4KONT
PDF
/
Buying Options
Total Price: USD $6.35
Unit Price: USD $6.3536
≥1 USD $6.3536
≥10 USD $5.74728
≥100 USD $5.4296
≥500 USD $5.297248
≥1000 USD $5.032368
≥3000 USD $4.502652
Inventory: 374
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount
Package / Case Metal
Mounting Feature Flange
Number of Pins 4
Shell Material Zinc Die Cast
Body Material Metal
Technical
Operating Temperature -25°C~75°C
Published 2000
Series AC Z
Feature Ground
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 4
Max Operating Temperature 75°C
Min Operating Temperature -25°C
Color Silver
Applications Audio
Gender Male
Voltage - Rated 133V
Fastening Type Push-Pull
Voltage - Rated DC 133V
Contact Finish - Mating Silver
Current Rating (Amps) 10A
Orientation Keyed
Shielding Shielded
Ingress Protection IP40
Current Rating 10A
Shell Finish Nickel
Shell Size - Insert XLR
Voltage - Rated AC 50V
Number of Contacts 4
Contact Resistance 3mOhm
Insulation Resistance 1GOhm
Plating Nickel
Number of Ports 1
Dimensions
Height 31mm
Length 26mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings IP40
