AC3MMDZ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

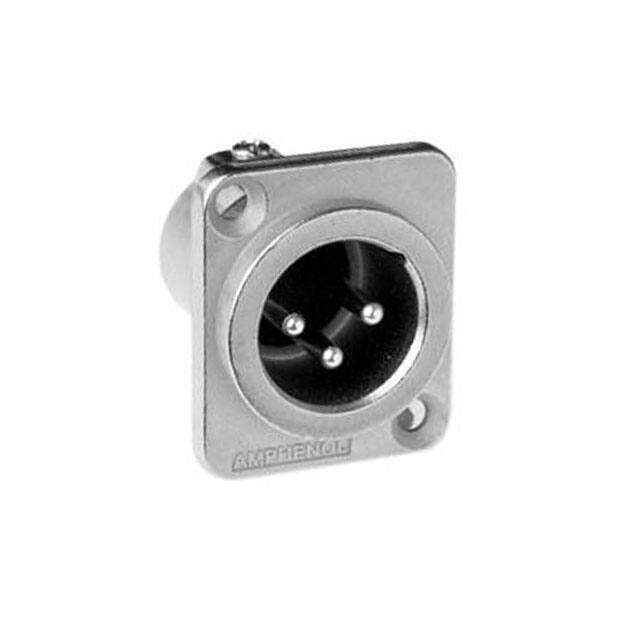

AMPHENOL - AC3MMDZ - PLUG, XLR, PANEL, UNIFIED, 3POLE
PDF
/
Buying Options
Total Price: USD $4.24
Unit Price: USD $4.2416
≥1 USD $4.2416
≥10 USD $3.85352
≥100 USD $3.649888
≥500 USD $3.565056
≥1000 USD $3.395216
≥3000 USD $2.97081
Inventory: 607
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Mount Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Zinc Die Cast
Body Material Metal
Technical
Operating Temperature -25°C~75°C
Packaging Bulk
Published 2005
Series AC Z
JESD-609 Code e4
Feature Ground
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 3
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Male Pins
Gender Male
Fastening Type Push-Pull
Voltage - Rated DC 133V
Contact Finish - Mating Silver
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Orientation Keyed
Shielding Shielded
Ingress Protection IP40
Reach Compliance Code unknown
Current Rating 15A
Shell Finish Nickel
Shell Size - Insert XLR
Voltage - Rated AC 50V
Contact Resistance 3mOhm
Insulation Resistance 1GOhm
Max Current Rating 15A
Number of Ports 1
Number of Poles 3
Dimensions
Height 31mm
Length 26mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
