AC3MMB
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

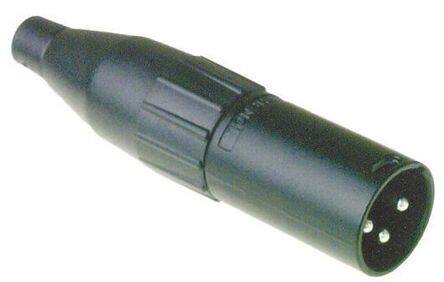

XLR Connectors METAL PLUG CABLE MACH 3 PIN BLK
PDF
/
Buying Options
Total Price: USD $5.31
Unit Price: USD $5.3064
≥1 USD $5.3064
≥10 USD $4.8224
≥100 USD $4.5672
≥500 USD $4.460896
≥1000 USD $4.248464
≥3000 USD $3.717402
Inventory: 532
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 82mm
Technical
Cable Opening 0.118 ~ 0.256 (3.00mm ~ 6.50mm)
Number of Ports 1
Max Current Rating 15A
Max Voltage Rating (AC) 133V
Number of Contacts 3
Shell Size - Insert XLR
Shell Finish Black
Current Rating 15A
Ingress Protection IP40
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 15A
Contact Finish - Mating Silver
Voltage - Rated DC 133V
Fastening Type Latch Holder
Voltage - Rated 133V
Gender Male
Applications Audio
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 75°C
Number of Positions 3
Connector Type Receptacle, Male Pins
Termination Solder Cup
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Cable Clamp
Series AC
Published 2006
Operating Temperature -25°C~75°C
Physical
Backshell Material, Plating Polyphenylene Ether (PPE)
Housing Material Polybutylene
Shell Material Zinc Die Cast
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable
Contact Plating Silver
Contact Material Brass
Supply Chain
Factory Lead Time 12 Weeks
