RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description

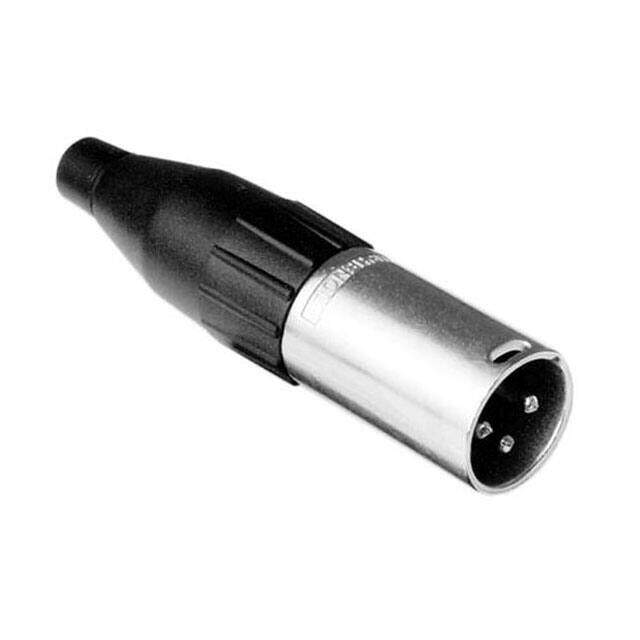

XLR Connectors METAL PLUG CABLE 3 PIN
PDF
/
Buying Options
Total Price: USD $4.4
Unit Price: USD $4.4
≥1 USD $4.4
≥10 USD $3.9952
≥100 USD $3.783648
≥500 USD $3.695648
≥1000 USD $3.519648
≥3000 USD $3.079683
Inventory: 592
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Length 82mm
Height 19mm
Technical
Number of Poles 3
Number of Ports 1
Max Current Rating 15A
Max Voltage Rating (AC) 133V
Contact Resistance 3mOhm
Shell Size - Insert XLR
Shell Finish Nickel
Current Rating 15A
Reach Compliance Code unknown
Ingress Protection IP40
Orientation Keyed
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Silver
Voltage - Rated DC 133V
Fastening Type Latch Holder
Voltage - Rated 133V
Gender Male
Connector Type Receptacle, Male Pins
Termination Solder Cup
Number of Terminations 3
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Backshell, Cable Clamp
Series AC
Published 2007
Packaging Bulk
Operating Temperature -25°C~75°C
Physical
Housing Material Polybutylene
Shell Material Zinc Die Cast
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
