RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

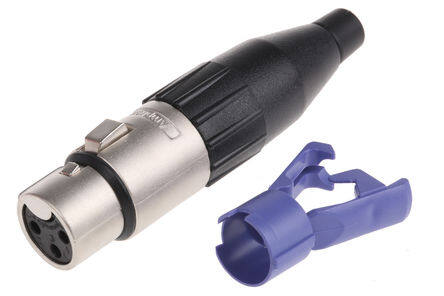

Conn XLR Connector F 3 POS Solder Bucket ST Cable Mount 3 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $10.21
Unit Price: USD $10.214362
≥1 USD $10.214362
≥200 USD $4.076555
≥500 USD $3.940013
≥1000 USD $3.873055
Inventory: 3361
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Cable
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Housing Material Zinc
Backshell Material, Plating Polyphenylene Ether (PPE)
Technical
Operating Temperature -25°C~75°C
Published 2006
Series AC
Feature Backshell, Cable Clamp
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 3
Max Operating Temperature 75°C
Min Operating Temperature -25°C
Color Silver
Applications Audio
Gender Female
Voltage - Rated 133V
Fastening Type Latch Lock
Contact Finish - Mating Tin
Current Rating (Amps) 15A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP40
Current Rating 15A
Shell Finish Nickel
Shell Size - Insert XLR
Number of Contacts 3
Max Voltage Rating (AC) 133V
Max Current Rating 15A
Plating Nickel
Number of Ports 1
Cable Opening 0.256 ~ 0.315 (6.50mm ~ 8.00mm)
Dimensions
Diameter 19mm
Length 82mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
