AC3FDZB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

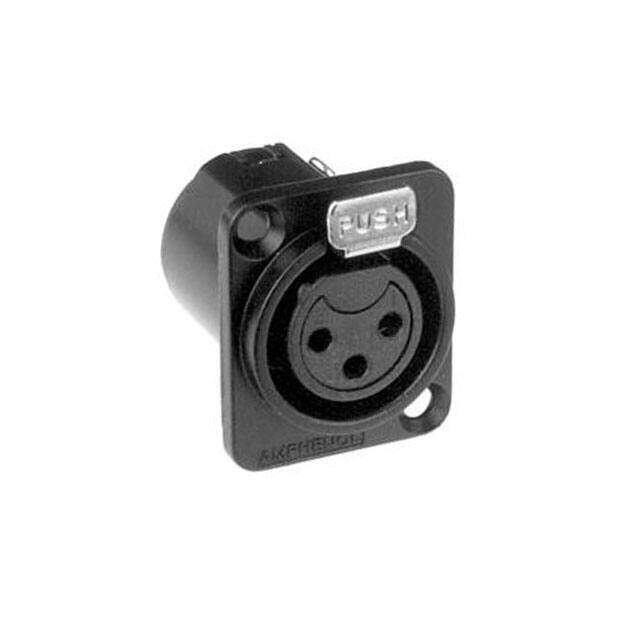

AMPHENOL AC3FDZB XLR Audio Connector, Socket, 3 Contacts, Panel Mount, Metal Body, Tin Plated Contacts, AC Series
PDF
/
Buying Options
Total Price: USD $5.07
Unit Price: USD $5.0688
≥1 USD $5.0688
≥10 USD $4.59976
≥100 USD $4.357056
≥500 USD $4.255504
≥1000 USD $4.052928
≥3000 USD $3.54633
Inventory: 413
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Bronze
Contact Plating Tin
Mount Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Zinc Die Cast
Body Material Metal
Technical
Operating Temperature -25°C~75°C
Packaging Bulk
Published 2006
Series AC Z
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 3
Color Black
Gender Female
Additional Feature STANDARD: IEC-268-12
Fastening Type Latch Lock
Voltage - Rated DC 133V
Contact Finish - Mating Silver
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Orientation Keyed
Ingress Protection IP40
Reach Compliance Code unknown
Current Rating 15A
Shell Finish Polyester
Shell Size - Insert XLR
Voltage - Rated AC 50V
Contact Resistance 3mOhm
Configuration 1X1 VERTICAL
Insulation Resistance 1GOhm
Number of Ports 1
Number of Poles 3
Dimensions
Length 26mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
