AC3FDZ
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

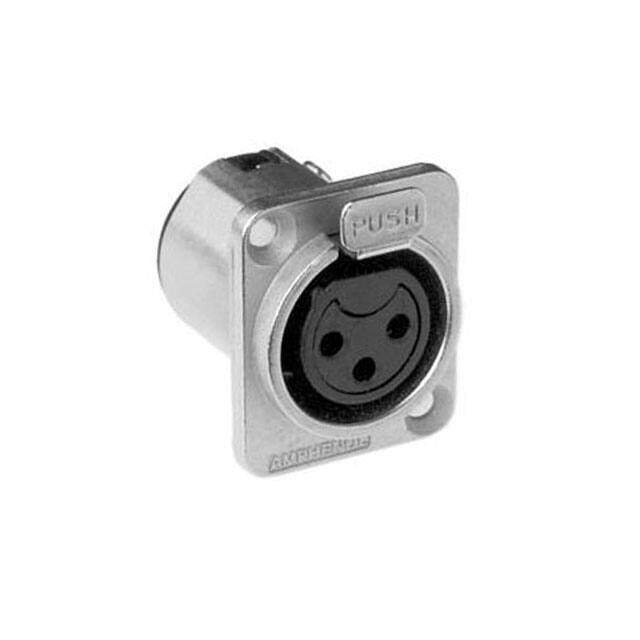

AMPHENOL - AC3FDZ - SOCKET, XLR, PANEL, UNIFIED, 3POLE
PDF
/
Buying Options
Total Price: USD $4.6
Unit Price: USD $4.6024
≥1 USD $4.6024
≥10 USD $4.17648
≥100 USD $3.955776
≥500 USD $3.863552
≥1000 USD $3.679632
≥3000 USD $3.219674
Inventory: 405
Minimum: 1
-
+
Technical Details
Technical
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Silver
Voltage - Rated DC 133V
Fastening Type Latch Lock
Gender Female
Connector Type Plug, Female Sockets
Termination Solder Cup
Number of Terminations 3
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Ground
Series AC Z
Published 2006
Packaging Bulk
Operating Temperature -25°C~75°C
Number of Poles 3
Number of Ports 1
Max Current Rating 15A
Insulation Resistance 1GOhm
Contact Resistance 3mOhm
Voltage - Rated AC 50V
Shell Size - Insert XLR
Shell Finish Nickel
Current Rating 15A
Reach Compliance Code unknown
Depth 33.1mm
Ingress Protection IP40
Shielding Shielded
Orientation Keyed
Option GENERAL PURPOSE
IEC Conformance NO
Physical
Body Material Metal
Shell Material Zinc Die Cast
Mounting Feature Flange
Mounting Type Panel Mount
Mount Panel
Contact Plating Tin
Contact Material Bronze
Supply Chain
Factory Lead Time 12 Weeks
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 26mm
Height 31mm
