RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

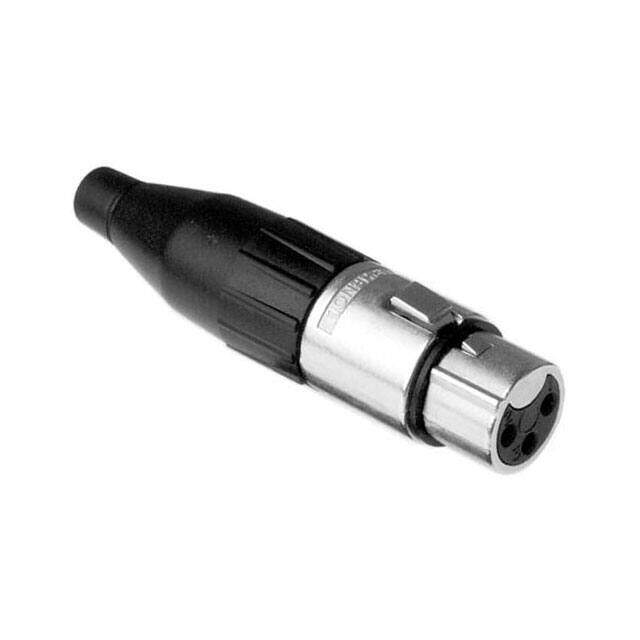

AMPHENOL AC3F XLR Audio Connector, Socket, 3 Contacts, Cable Mount, Metal Body, Tin Plated Contacts, AC Series
PDF
/
Buying Options
Total Price: USD $4.71
Unit Price: USD $4.708
≥1 USD $4.708
≥10 USD $4.27768
≥100 USD $4.051168
≥500 USD $3.957008
≥1000 USD $3.768512
≥3000 USD $3.297466
Inventory: 1248
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Bronze
Contact Plating Tin
Mount Cable
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Die Cast
Body Material Metal
Technical
Operating Temperature -25°C~75°C
Packaging Bulk
Published 2000
Series AC
Feature Backshell, Cable Clamp
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Female Sockets
Number of Positions 3
Gender Female
Additional Feature STANDARDS: IEC 268-12
Fastening Type Latch Lock
Voltage - Rated DC 133V
Contact Finish - Mating Silver
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Orientation Keyed
Ingress Protection IP40
Reach Compliance Code unknown
Current Rating 15A
Shell Finish Nickel
Shell Size - Insert XLR
Voltage - Rated AC 50V
Contact Resistance 3mOhm
Configuration 1X1 VERTICAL
Insulation Resistance 1GOhm
Number of Ports 1
Number of Poles 3
Dimensions
Diameter 19mm
Height 19mm
Length 82mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
