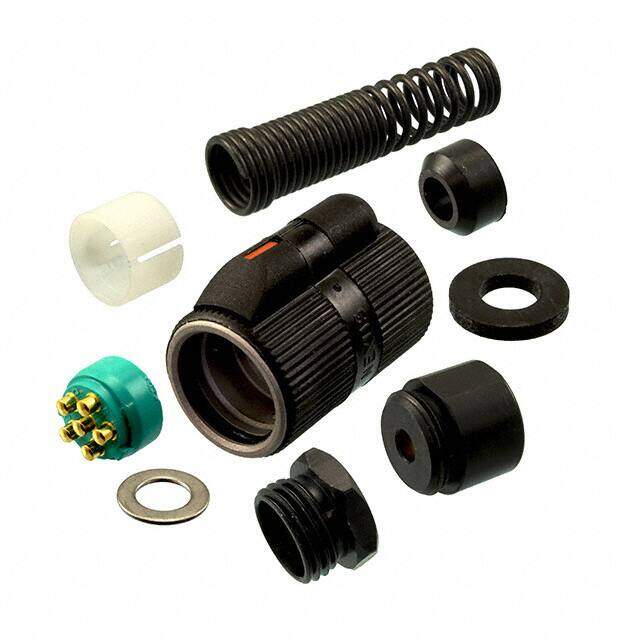

AP-145/3-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 5P GOLD SLDR CUP
PDF
/
Buying Options
Total Price: USD $23.28
Unit Price: USD $23.2848
≥1 USD $23.2848
≥10 USD $20.38872
≥100 USD $19.507488
≥500 USD $18.878112
≥1000 USD $18.248824
≥3000 USD $17.242016
Inventory: 54
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Orientation Keyed
Current Rating (Amps) 0.5A
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Voltage - Rated 60V
Applications Audio, Military, Video
Color Black
Number of Positions 5
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MIL-DTL-55116, AP
Packaging Bulk
Operating Temperature -55°C~85°C
Physical
Backshell Material, Plating Aluminum, Anodized
Insert Material Diallyl Phthalate (DAP)
Shell Material Polyamide (PA), Nylon, Glass Filled and Stainless Steel
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Supply Chain
Factory Lead Time 6 Weeks
