AP-125/1-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

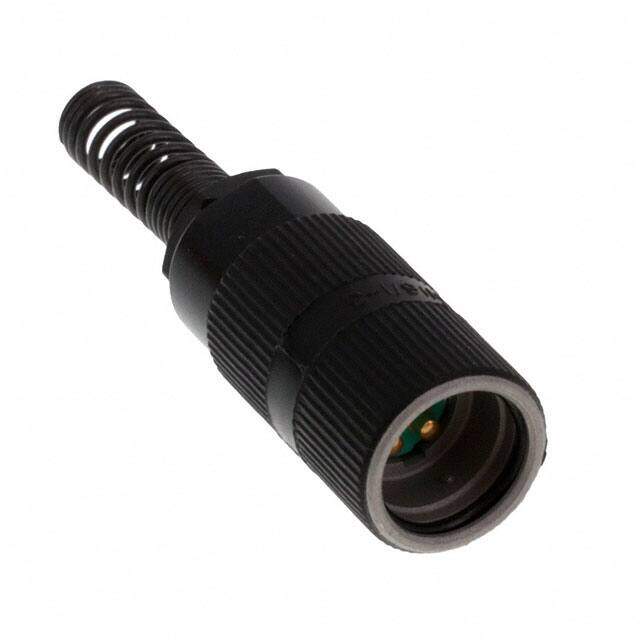

MILITARY AUDIO PLUGS FIVE AND SIX CONDUCTOR
PDF
/
Buying Options
Total Price: USD $22.74
Unit Price: USD $22.7392
≥1 USD $22.7392
≥10 USD $19.91352
≥100 USD $17.82352
Inventory: 78
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Brass
Mounting Type Free Hanging (In-Line)
Shell Material Polyamide (PA), Nylon, Glass Filled and Stainless Steel
Insert Material Diallyl Phthalate (DAP)
Backshell Material, Plating Aluminum, Anodized
Technical
Operating Temperature -55°C~85°C
Packaging Bulk
Series MIL-DTL-55116, AP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Female Sockets
Number of Positions 5
Color Black
Applications Audio, Military, Video
Voltage - Rated 60V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
Current Rating (Amps) 0.5A
Orientation Keyed
Cable Opening 0.250 (6.35mm)
Compliance
RoHS Status RoHS Compliant
