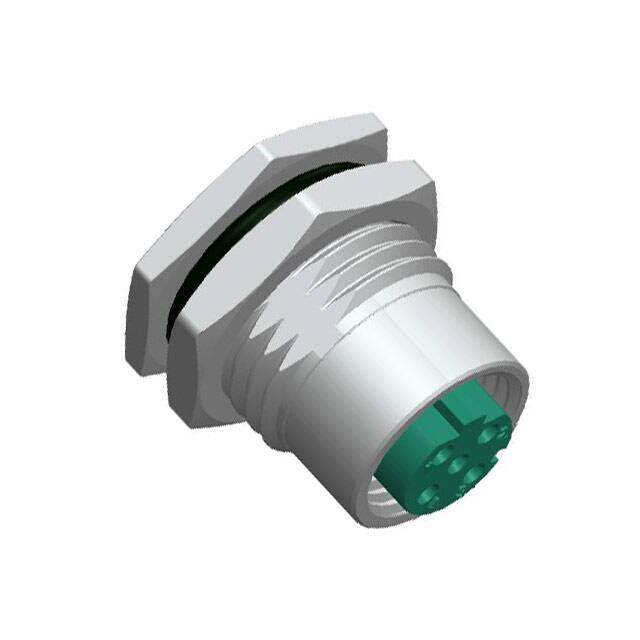

M12D-04PFFS-SF8001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 4POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $7.4
Unit Price: USD $7.4008
≥1 USD $7.4008
≥10 USD $6.6924
≥100 USD $6.322624
≥500 USD $6.168272
≥1000 USD $5.859832
≥3000 USD $5.24304
Inventory: 1528
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Shell Material Zinc Alloy
Insert Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Published 2016
Series M
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Silver
Gender Receptacle
Voltage - Rated 250VAC/DC
Fastening Type Threaded
Voltage - Rated DC 250V
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Orientation D
Shielding Shielded
Ingress Protection IP68/69K - Dust Tight, Water Resistant, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Compliance
RoHS Status RoHS Compliant
