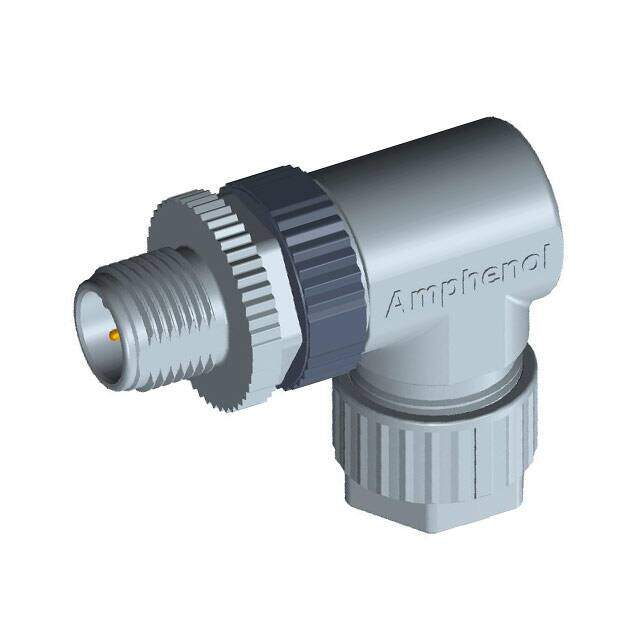

M12A-04BMMB-SR7001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG MALE 4POS GOLD SCREW
PDF
/
Buying Options
Total Price: USD $7.33
Unit Price: USD $7.3304
≥1 USD $7.3304
≥10 USD $6.49352
≥100 USD $6.24419
≥500 USD $5.994384
≥1000 USD $5.863
Inventory: 208
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mounting Type Free Hanging (In-Line), Right Angle
Number of Pins 4
Shell Material Zinc Alloy
Insert Material Polyamide (PA), Nylon
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2015
Series M
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Plug, Male Pins
Number of Positions 4
Color Black, Silver
Voltage - Rated 250VAC/DC
Fastening Type Threaded
Voltage - Rated DC 250V
Contact Finish - Mating Gold
Current Rating (Amps) 4A
Orientation A
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Shell Finish Nickel
Shell Size - Insert M12-4
Compliance
RoHS Status RoHS Compliant
