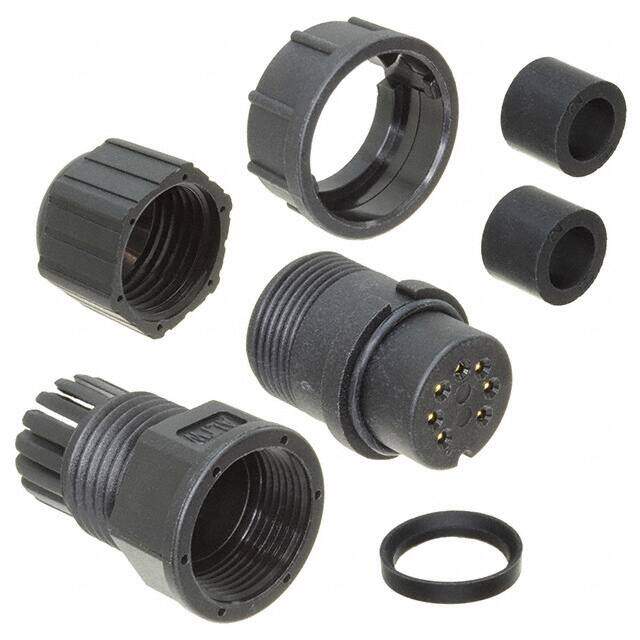

CD-07BFFA-LL7001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
MIDDLE
PDF
/
Buying Options
Total Price: USD $13.61
Unit Price: USD $13.6136
≥1 USD $13.6136
≥10 USD $12.06304
≥100 USD $11.59899
≥500 USD $11.134816
≥1000 USD $10.516264
≥3000 USD $9.588374
Inventory: 186
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Shell Size - Insert C
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 5A
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Color Black
Number of Positions 7
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series Middle
Published 2017
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon, Glass Filled
Shell Material Polyamide (PA), Nylon, Glass Filled
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 6 Weeks
