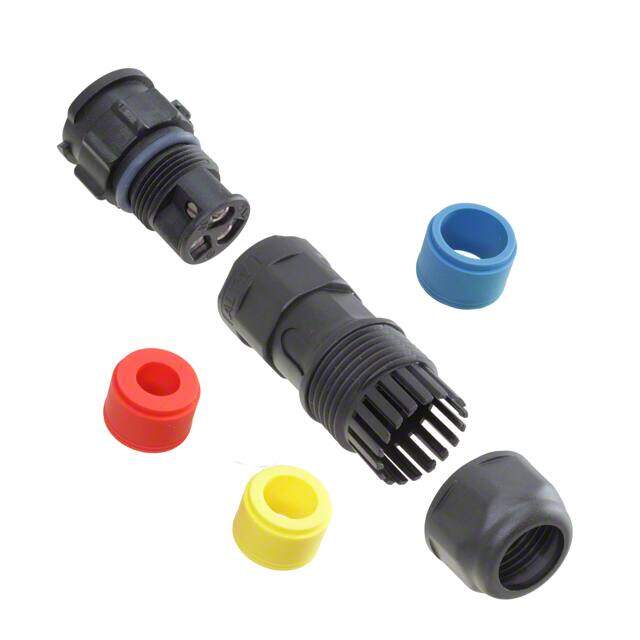

CC-03BMFB-QL8APP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 3POS GOLD SCREW
PDF
/
Buying Options
Total Price: USD $30.49
Unit Price: USD $30.490046
≥1 USD $30.490046
≥10 USD $28.7642
≥100 USD $27.136029
≥500 USD $25.600036
≥1000 USD $24.150976
Inventory: 6409
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Shell Material Thermoplastic
Insert Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series X-Lok
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Receptacle, Female Sockets
Number of Positions 3 (2 Power + PE)
Color Black
Voltage - Rated 300VAC/DC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Current Rating (Amps) 20A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP68 - Dust Tight, Waterproof
Shell Size - Insert C
Cable Opening 0.236 ~ 0.472 (6.00mm ~ 12.00mm)
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
