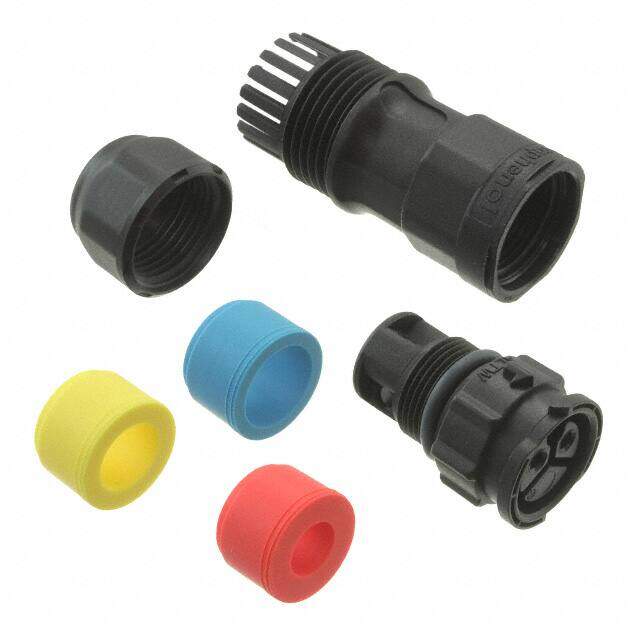

CC-02BMFB-QL8APP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
XLOK, C-20A, 02P, FIELD INSTALLA
PDF
/
Buying Options
Total Price: USD $8.47
Unit Price: USD $8.4656
≥1 USD $8.4656
≥10 USD $7.6164
≥100 USD $7.175168
≥500 USD $6.991248
≥1000 USD $6.807328
≥3000 USD $6.071402
Inventory: 110
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Cable Opening 0.236 ~ 0.472 (6.00mm ~ 12.00mm)
Shell Size - Insert C
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 20A
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 300VAC/DC
Color Black
Number of Positions 2 (Power)
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series X-Lok
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insert Material Polyamide (PA), Nylon, Glass Filled
Shell Material Thermoplastic
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 6 Weeks
