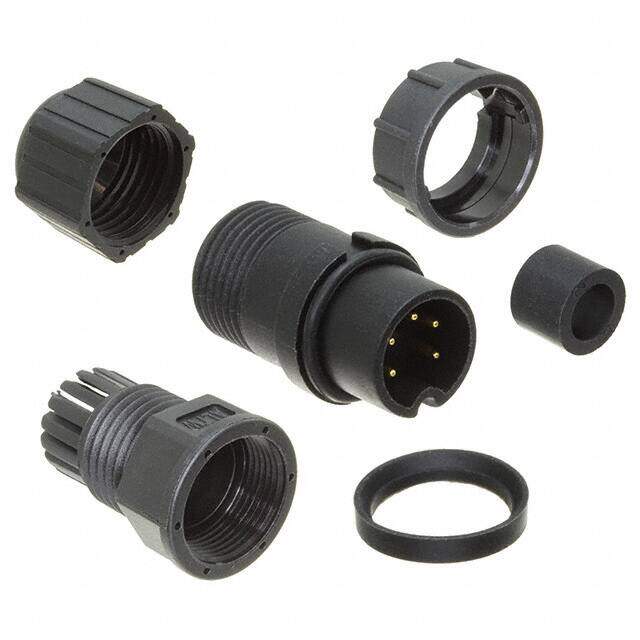

BD-05BFMA-LL7001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Standard RoHS Compliant IP67 2013 Circular Connector 105C 5A 500V
PDF
/
Buying Options
Total Price: USD $9.86
Unit Price: USD $9.856
≥1 USD $9.856
≥10 USD $8.86776
≥100 USD $8.35384
≥500 USD $8.139648
≥1000 USD $7.925456
≥3000 USD $7.068618
Inventory: 324
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP67
RoHS Status RoHS Compliant
Technical
Cable Opening 0.177 ~ 0.256 (4.50mm ~ 6.50mm)
Max Current Rating 5A
Contact Gender Male
Number of Contacts 5
Shell Size - Insert B
Current Rating 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Current Rating (Amps) 5A
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Voltage - Rated 500V
Gender Receptacle
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 5
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series Standard
Published 2013
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Backshell Material, Plating Polyamide (PA), Nylon
Insert Material Polyamide (PA), Nylon, Glass Filled
Housing Material Nylon
Shell Material Polyamide (PA), Nylon, Glass Filled
Mounting Type Free Hanging (In-Line)
Mount Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 6 Weeks
