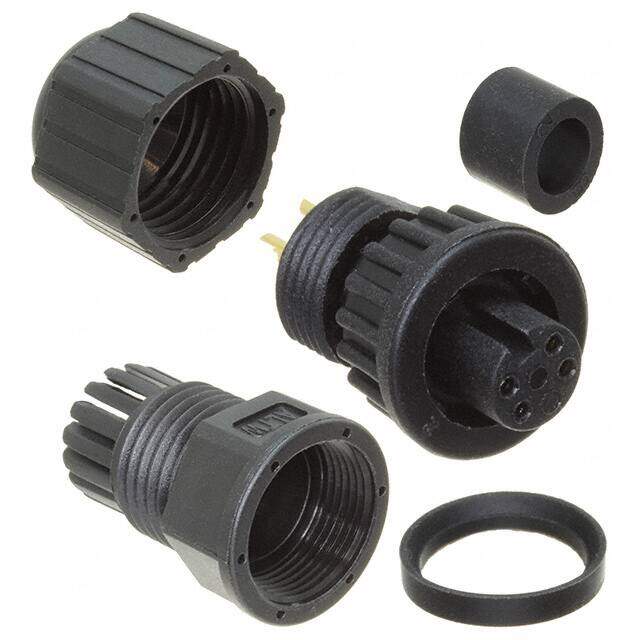

AU-04BFFA-LL7001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONNECTOR, CIRCULAR, RCPT, 4POS, CABLE
PDF
/
Buying Options
Total Price: USD $9.78
Unit Price: USD $9.7768
≥1 USD $9.7768
≥10 USD $8.66624
≥100 USD $8.33243
≥500 USD $7.9992
≥1000 USD $7.5548
≥3000 USD $6.888218
Inventory: 198
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Panel
Mounting Type Free Hanging (In-Line)
Number of Pins 4
Shell Material Polyamide (PA), Nylon, Glass Filled
Housing Material Nylon
Insert Material Polyamide (PA), Nylon, Glass Filled
Backshell Material, Plating Polyamide (PA), Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2010
Series MINI
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 4
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Gender Receptacle
Voltage - Rated 500V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
Current Rating (Amps) 2A
Orientation Keyed
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 2A
Shell Size - Insert A
Number of Contacts 4
Contact Gender Female
Cable Opening 0.177 ~ 0.256 (4.50mm ~ 6.50mm)
Compliance
RoHS Status RoHS Compliant
Ratings IP67
