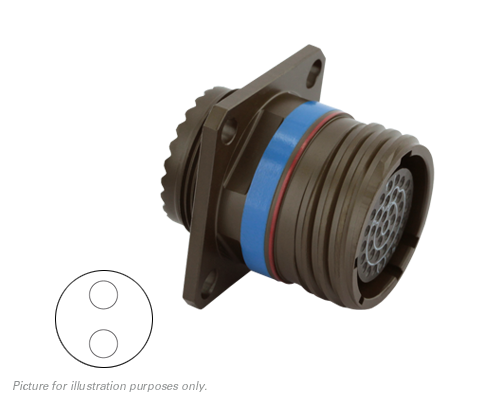

PT07E-12-8P(SR) image
Favorite
PT07E-12-8P(SR) image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description CONNECTOR, JAM NUT RECEPTACLE W/CABLE CLAMP, CLASS E, SIZE 12, 8#20 SOLDER PIN CONT
PDF
/
Inventory: 2586
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings Environment Resistant
RoHS Status Non-RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Technical

Contact Style Pin
Contact Gender Male
Approval Agency UL
Voltage - Rated AC 600V
Shell Size - Insert 12-8
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 7.5A
Ingress Protection Environment Sealed
Shielding Unshielded
Orientation N (Normal)
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Gender Receptacle
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 8
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Cable Clamp
Series MIL-DTL-26482 Series I, PT
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Backshell Material, Plating Aluminum, Olive Drab Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Mount Bulkhead, Front Side Nut, Jam Nut, Panel
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 16 Weeks
