PT07A-12-4P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

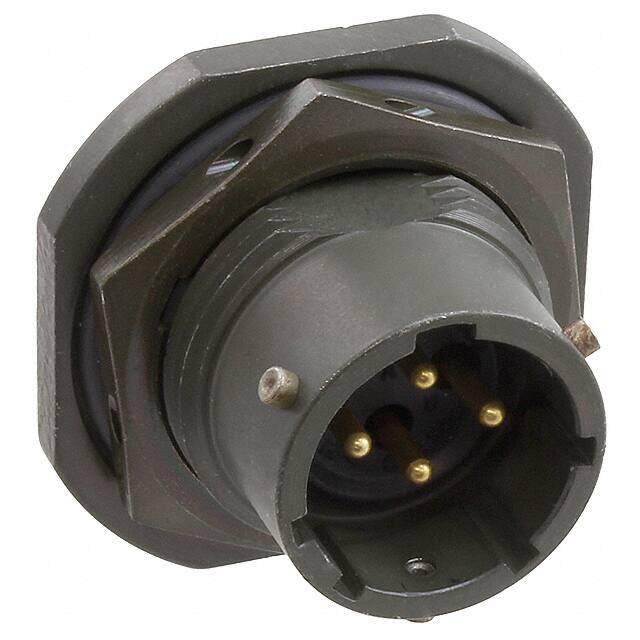

AMPHENOL PT07A12-4P CONNECTOR, CIRCULAR, SIZE 12, 4WAY
PDF
/
Buying Options
Total Price: USD $50.49
Unit Price: USD $50.4944
≥1 USD $50.4944
≥10 USD $46.33816
≥100 USD $44.555456
≥500 USD $43.070368
≥1000 USD $40.694104
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Bulkhead, Front Side Nut, Jam Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series MIL-DTL-26482 Series I, PT
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 4
Color Olive Drab
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender Receptacle
Voltage - Rated 1kV
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation N (Normal)
Shielding Unshielded
Depth 31.75mm
Current Rating 13A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 12-4
Approval Agency UL
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Environmental Characteristics CORROSION RESISTANT
Plating Cadmium, Chromate
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 16 AWG
Body Plating Cadmium
Dimensions
Diameter 19 mm
Length 23.54mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
