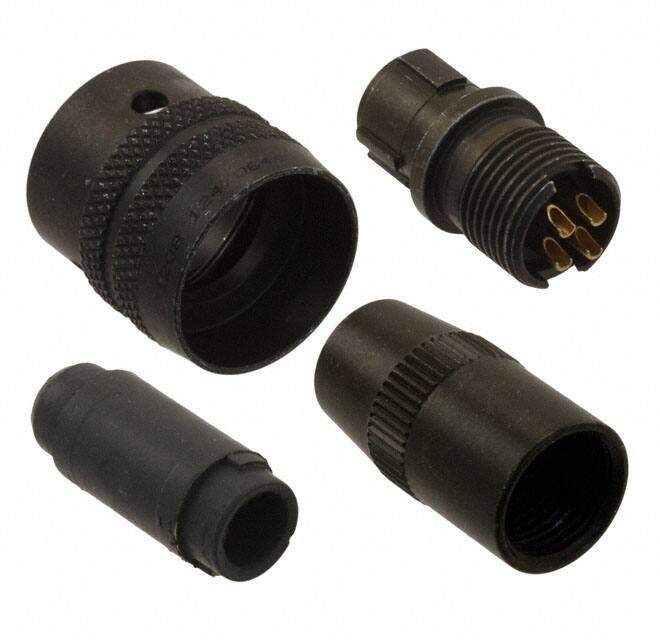

PT06W-8-4S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 4POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $38.21
Unit Price: USD $38.2096
≥1 USD $38.2096
≥10 USD $35.06536
≥100 USD $33.716672
≥500 USD $32.592736
≥1000 USD $30.794544
≥3000 USD $29.895395
Inventory: 82
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Body Plating Cadmium
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Plating Cadmium, Chromate
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert 8-4
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 7.5A
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Voltage - Rated 600V
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 4
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series MIL-DTL-26482 Series I, PT
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
