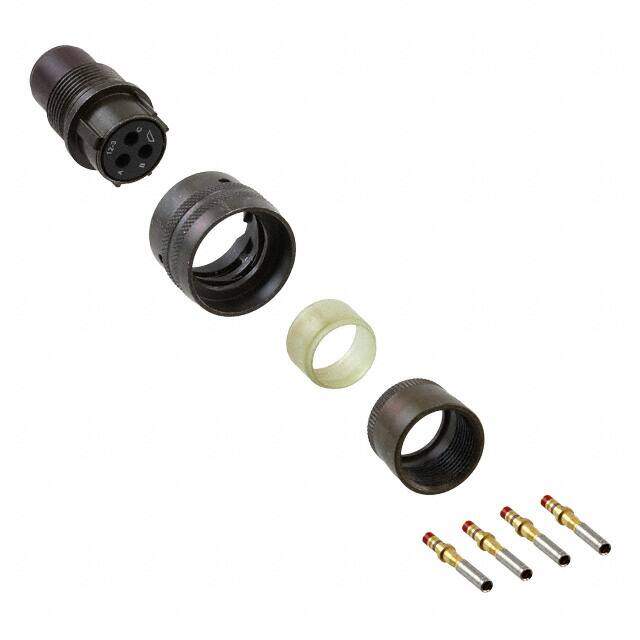

PT06SE-12-3S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONNECTOR, CIRCULAR, SIZE 12, 3WAY
PDF
/
Buying Options
Total Price: USD $58.38
Unit Price: USD $58.3792
≥1 USD $58.3792
≥10 USD $53.57528
≥100 USD $47.050256
Inventory: 89
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2002
Series MIL-DTL-26482 Series I, PT
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
Connector Type Plug, Female Sockets
Number of Positions 3
Color Olive Drab
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Additional Feature STANDARD: MIL-C-26482, COMPATIBLE CONTACT: 10-257982-16F, POLARIZATION AVAILABLE
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 3
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Sealed
Current Rating 13A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 12-3
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Body Plating Cadmium
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
