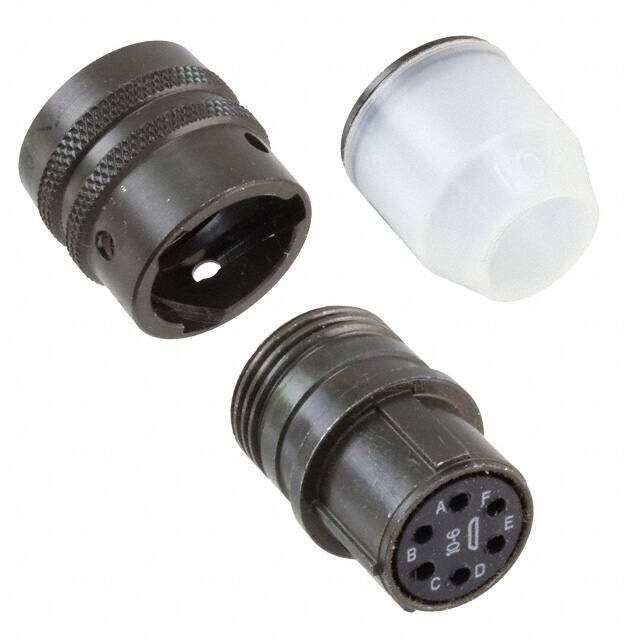

PT06P-10-6S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 6P Size 10 Straight Socket Plug
PDF
/
Buying Options
Total Price: USD $20.83
Unit Price: USD $20.8296
≥1 USD $20.8296
≥10 USD $18.24328
≥100 USD $16.328576
Inventory: 93
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Body Plating Cadmium
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Plating Cadmium, Chromate
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert 10-6
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 7.5A
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 6
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Voltage - Rated 600V
Gender Receptacle
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 6
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Coupling Nut, Potted
Series MIL-DTL-26482 Series I, PT
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
