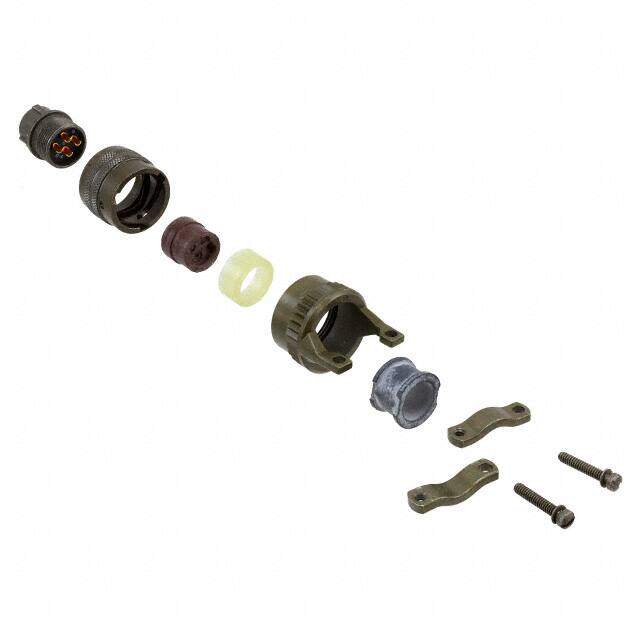

PT06E-12-4S(SR)
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 4POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $34.42
Unit Price: USD $34.4168
≥1 USD $34.4168
≥10 USD $30.13648
≥100 USD $28.83408
≥500 USD $27.90392
≥1000 USD $26.97376
≥3000 USD $25.485539
Inventory: 32
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series MIL-DTL-26482 Series I, PT
Feature Backshell, Cable Clamp, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 4
Color Olive Drab
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender Male
Voltage - Rated 1kV
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Sealed
Current Rating 13A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 12-4
Voltage - Rated AC 600V
Approval Agency UL
Contact Gender Female
Contact Style Socket
Plating Cadmium, Chromate
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 16 AWG
Body Plating Cadmium
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
