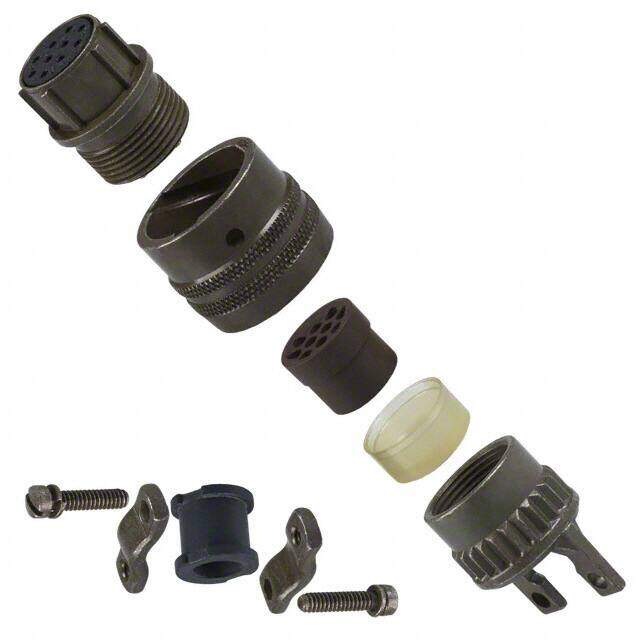

PT06E-12-10S(470)
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 10POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $32.21
Unit Price: USD $32.208
≥1 USD $32.208
≥10 USD $28.20664
≥100 USD $26.98784
≥500 USD $26.117344
≥1000 USD $25.246848
≥3000 USD $23.853878
Inventory: 207
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Insulation Material Rubber
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum, Black Zinc Cobalt
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series MIL-DTL-26482 Series I, PT
Feature Backshell, Cable Clamp, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 10
Max Operating Temperature 125°C
Min Operating Temperature -55°C
Color Black
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender Female
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Sealed
Current Rating 7.5A
Military Standard MIL-DTL-26482
Shell Finish Black Zinc Cobalt
Shell Size - Insert 12-10
Approval Agency UL
Number of Contacts 10
Contact Gender Female
Contact Style Socket
Plating Zinc
Body Plating Zinc
Dimensions
Length 48.41mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Environment Resistant
