PT06A-18-11S(SR)
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

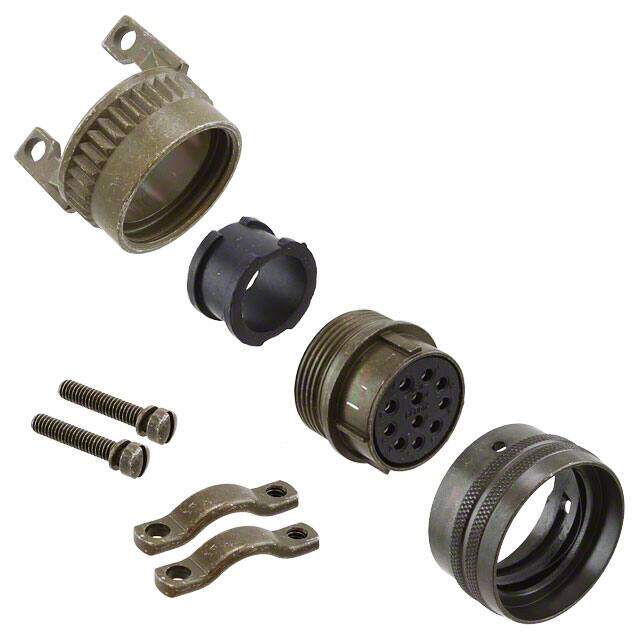

AMPHENOL INDUSTRIAL PT06A18-11S-SR Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Straight Plug, 11, Solder Socket
PDF
/
Buying Options
Total Price: USD $61.91
Unit Price: USD $61.908
≥1 USD $61.908
≥10 USD $56.80576
≥100 USD $54.621248
≥500 USD $52.800528
≥1000 USD $49.887376
Inventory: 39
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series MIL-DTL-26482 Series I, PT
Feature Backshell, Cable Clamp, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 11
Color Olive Drab
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Voltage - Rated 1kV
Additional Feature STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 11
Orientation N (Normal)
Shielding Unshielded
Current Rating 10A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 18-11
Voltage - Rated AC 1kV
Approval Agency UL
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating Cadmium, Chromate
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 16 AWG
Body Plating Cadmium
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
