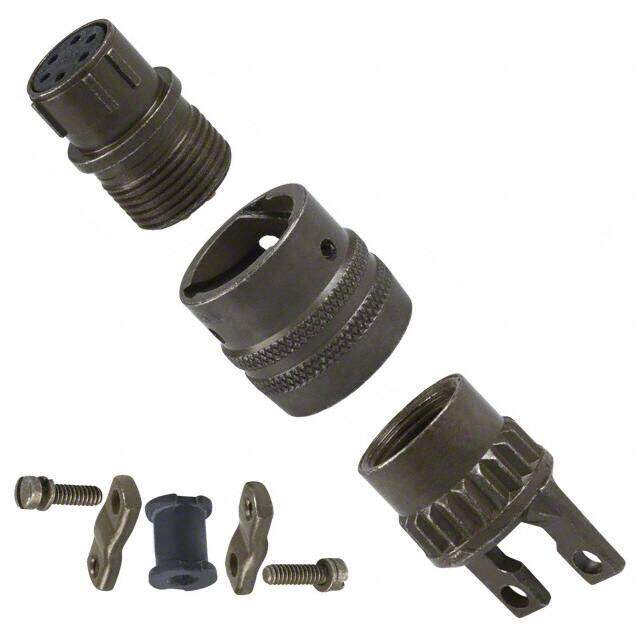

PT06A-10-6S(SR) image
Favorite
PT06A-10-6S(SR) image
Favorite
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description CONN PLUG FMALE 6POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $27.81
Unit Price: USD $27.808
≥1 USD $27.808
≥10 USD $24.34784
≥100 USD $23.296064
≥500 USD $22.544368
≥1000 USD $21.792936
≥3000 USD $20.590557
Inventory: 1215
Minimum: 1
-
+

Technical Details

Technical

Packaging Bulk
Published 2005
Series MIL-DTL-26482 Series I, PT
JESD-609 Code e4
Feature Backshell, Cable Clamp, Coupling Nut
Part Status Active
Operating Temperature -55°C~125°C
Body Plating Cadmium
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Contact Size 20
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Approval Agency UL
Voltage - Rated AC 600V
Shell Size - Insert 10-6
Reference Standard MIL
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 7.5A
Depth 22.22mm
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 6
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Voltage - Rated 1kV
Gender Male
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 6
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)

Physical

Backshell Material, Plating Aluminum, Olive Drab Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Insulation Material Rubber
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 16 Weeks

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC Unknown

Dimensions

Length 48.41mm
