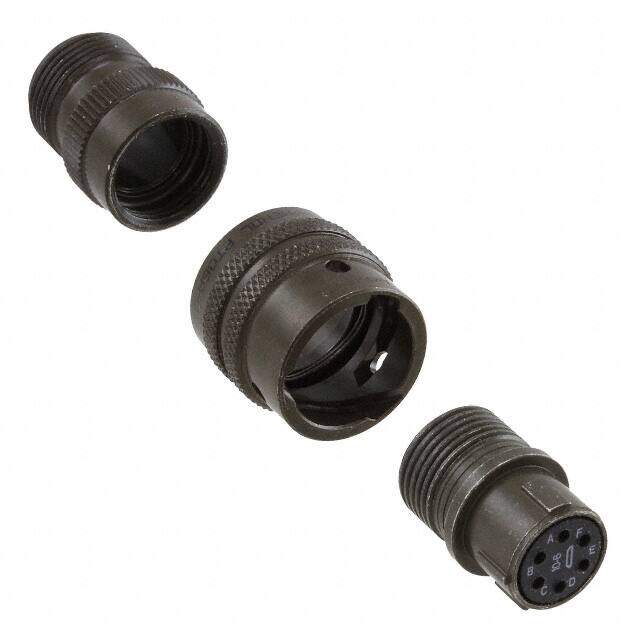

PT06A-10-6S
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
Conn Miniature Cylindrical SKT 6 POS Solder ST Cable Mount 6 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $22.41
Unit Price: USD $22.4136
≥1 USD $22.4136
≥10 USD $19.62488
≥100 USD $18.777088
≥500 USD $18.171472
≥1000 USD $17.565768
≥3000 USD $16.596659
Inventory: 372
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 40.86mm
Technical
Body Plating Cadmium
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Plating Cadmium, Chromate
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Approval Agency UL
Voltage - Rated AC 600V
Shell Size - Insert 10-6
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 7.5A
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 6
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Voltage - Rated 600V
Gender Receptacle
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 6
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series MIL-DTL-26482 Series I, PT
Published 2004
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
