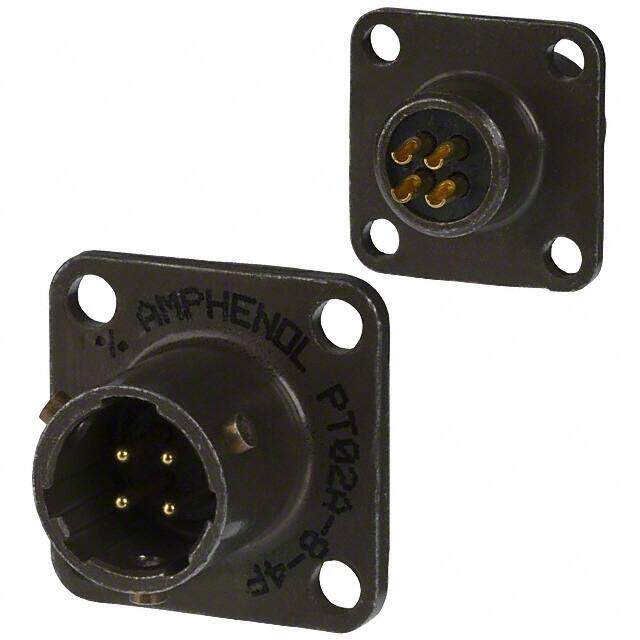

PT02E-8-4P
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 4POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $14.05
Unit Price: USD $14.0536
≥1 USD $14.0536
≥10 USD $12.18096
≥100 USD $11.544896
≥500 USD $11.37752
≥1000 USD $10.03904
≥3000 USD $9.369747
Inventory: 369
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Box, Flanges, Panel
Mounting Type Panel Mount
Package / Case Metal
Mounting Feature Flange
Insulation Material Rubber
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series MIL-DTL-26482 Series I, PT
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination Solder Cup
Connector Type Receptacle, Male Pins
Color Olive Drab
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender Receptacle
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Sealed
Current Rating 7.5A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 8-4
Voltage - Rated AC 600V
Approval Agency UL
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Max Voltage Rating (AC) 600V
Plating Aluminium, Cadmium, Chromate
Number of Ports 1
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Body Plating Cadmium
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Ratings Environment Resistant
