PT02E-16-26P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description

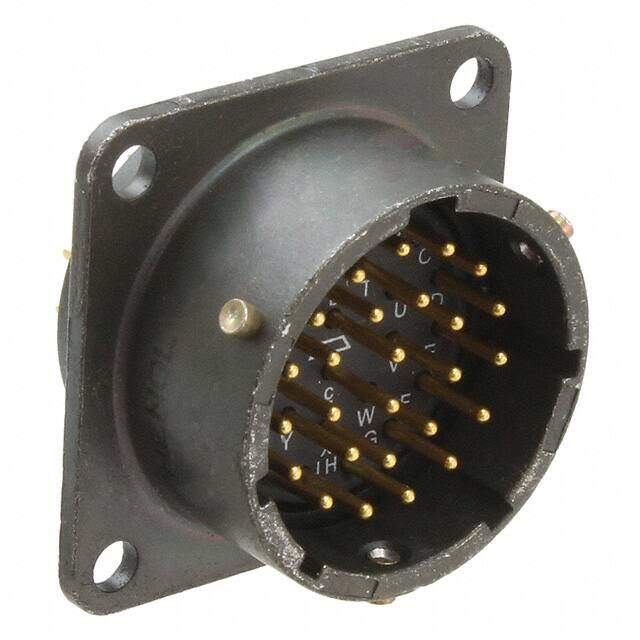

Circular MIL Spec Connector 26P Sz 16 Box Mount Pin Receptacle
PDF
/
Buying Options
Total Price: USD $21.15
Unit Price: USD $21.1464
≥1 USD $21.1464
≥10 USD $18.51696
≥100 USD $16.57348
Inventory: 125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Box, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series MIL-DTL-26482 Series I, PT
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 26
Color Olive Drab
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 26
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Sealed
Current Rating 7.5A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 16-26
Approval Agency UL
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating Cadmium, Chromate
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
Alternative Model
