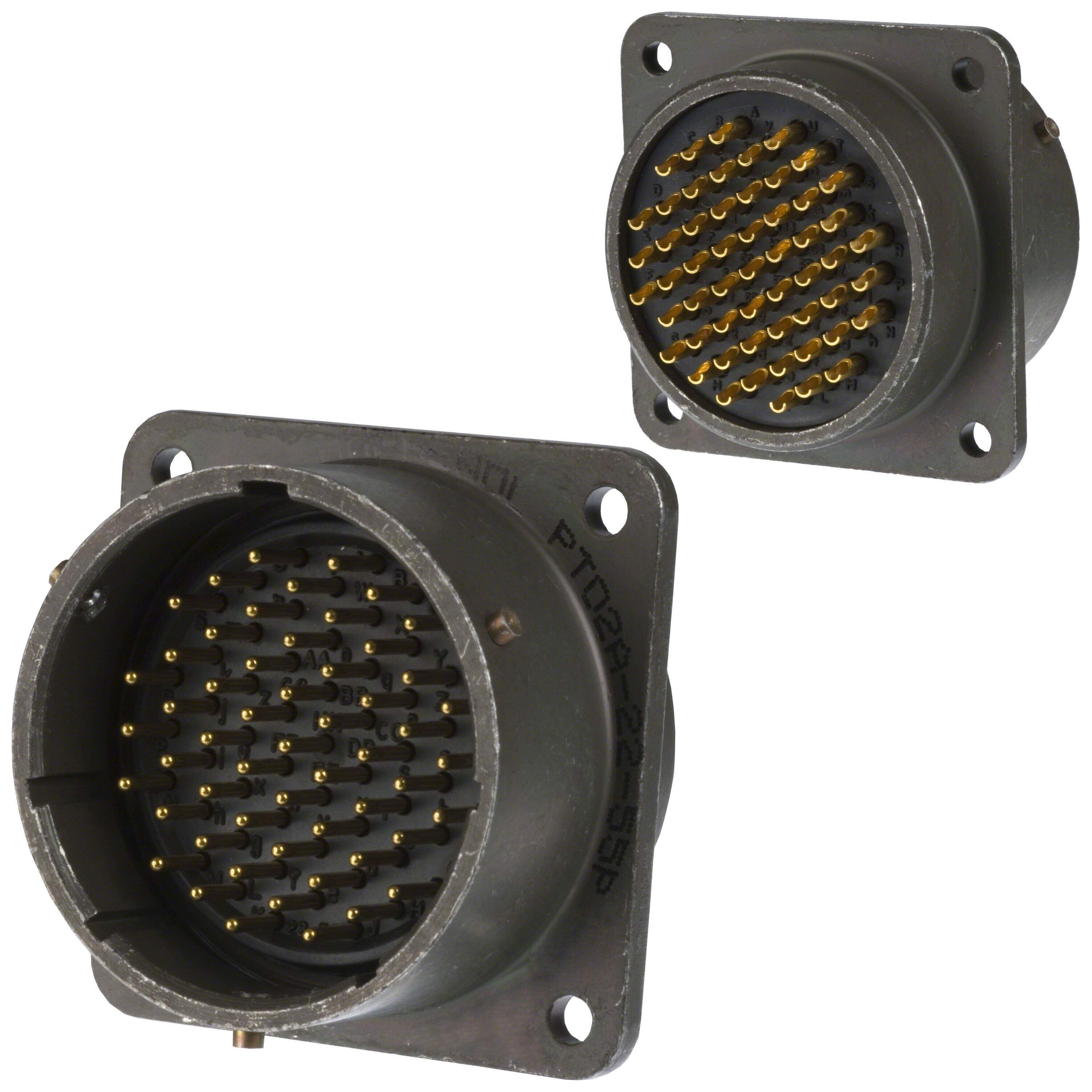

PT02A-22-55P(025)
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 55POS SOLDER CUP
PDF
/
Inventory: 3336
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Plating Zinc
Contact Style Pin
Contact Gender Male
Number of Contacts 55
Approval Agency UL
Voltage - Rated AC 600V
Shell Size - Insert 22-55
Shell Finish Black Zinc Cobalt
Military Standard MIL-DTL-26482
Current Rating 7.5A
Shielding Unshielded
Orientation N (Normal)
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Gender Male
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Color Black
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Number of Positions 55
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MIL-DTL-26482 Series I, PT
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insert Material Neoprene
Shell Material Aluminum
Insulation Material Rubber
Mounting Feature Flange
Package / Case Metal
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
