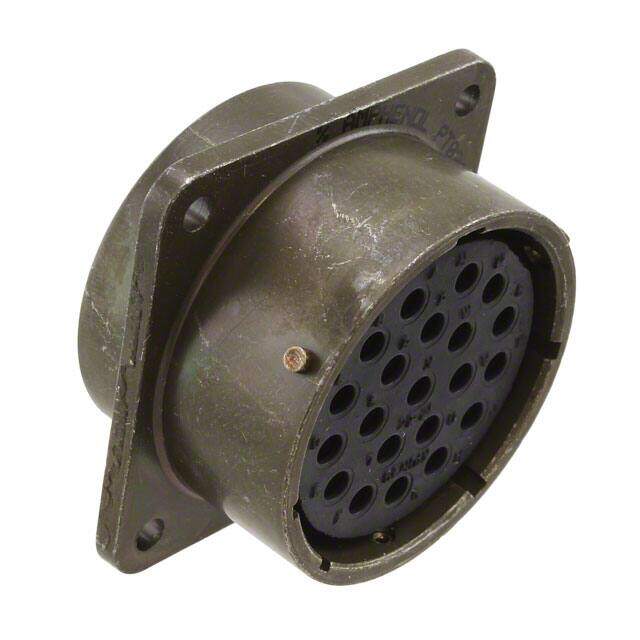

PT02A-22-21S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
AMPHENOL PT02A22-21S Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Box Mount Receptacle, 21
PDF
/
Buying Options
Total Price: USD $58.85
Unit Price: USD $58.8544
≥1 USD $58.8544
Inventory: 60
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Body Plating Cadmium
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 20 AWG
Plating Cadmium, Chromate
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Approval Agency UL
Shell Size - Insert 22-21
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 13A
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 21
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Additional Feature STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Voltage - Rated 1kV
Gender Receptacle
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 21
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series MIL-DTL-26482 Series I, PT
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C
