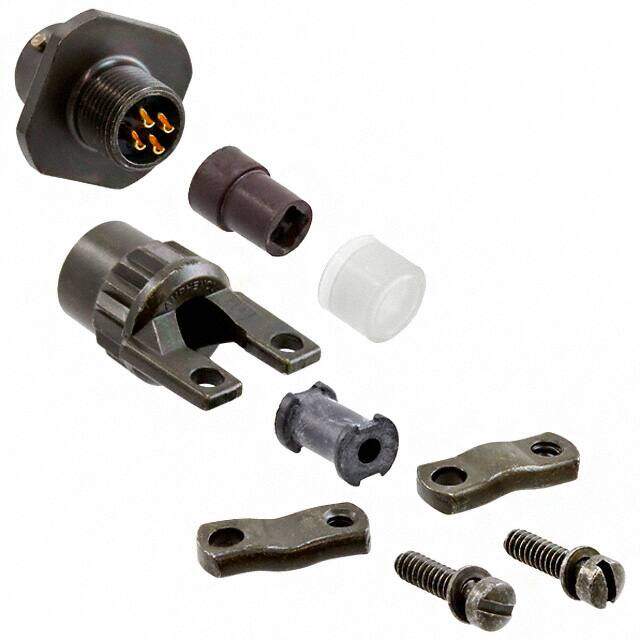

PT01E-8-4S(SR)
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
AMPHENOL PT01E8-4S-SR Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Cable Mount Receptacle, 4
PDF
/
Buying Options
Total Price: USD $41.99
Unit Price: USD $41.9936
≥1 USD $41.9936
≥10 USD $38.53168
≥100 USD $33.83864
Inventory: 121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series MIL-DTL-26482 Series I, PT
Feature Backshell, Cable Clamp
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 4
Color Olive Drab
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender Receptacle
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Sealed
Current Rating 7.5A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 8-4
Approval Agency UL
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 24 AWG
Body Plating Cadmium
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
