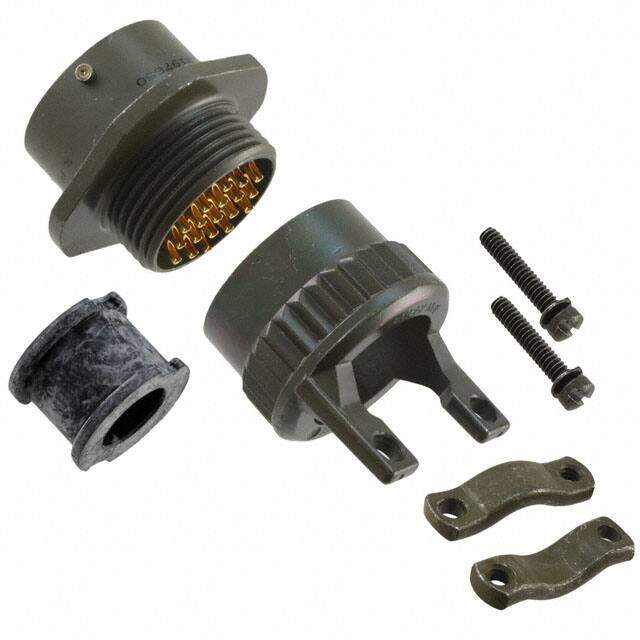

PT01A-14-19P(SR)
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
AMPHENOL PT01A14-19P-SR Circular Connector, PT Series, MIL-DTL-26482 Series I Equivalent, Cable Mount Receptacle, 19
PDF
/
Buying Options
Total Price: USD $54.03
Unit Price: USD $54.032
≥1 USD $54.032
≥10 USD $49.58184
≥100 USD $43.543368
Inventory: 25
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series MIL-DTL-26482 Series I, PT
Feature Backshell, Cable Clamp
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 19
Color Olive Drab
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender Receptacle
Additional Feature STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 19
Orientation N (Normal)
Shielding Unshielded
Depth 28.57mm
Current Rating 7.5A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 14-19
Approval Agency UL
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Body Plating Cadmium
Dimensions
Length 48.81mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
