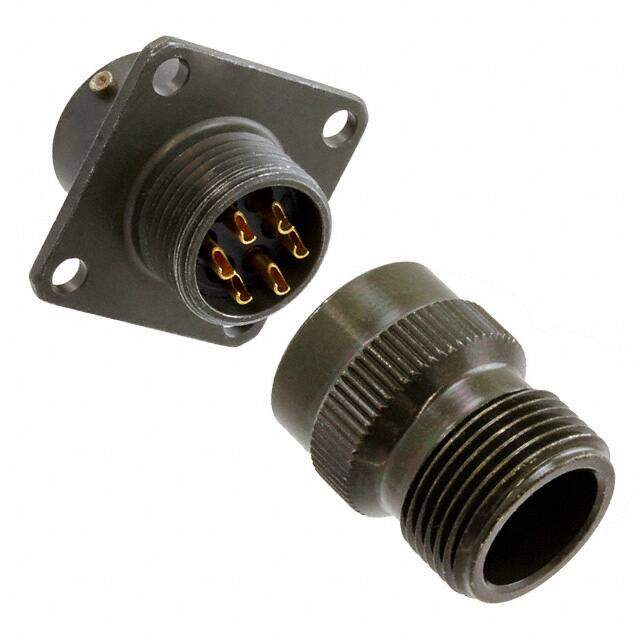

PT00A-10-6S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Olive Drab Chromate over Cadmium MIL-DTL-26482Series I PT Non-RoHS Compliant 2006 Circular Connector 24AWG -55C~125C 7.5A 600V
PDF
/
Buying Options
Total Price: USD $25.83
Unit Price: USD $25.828
≥1 USD $25.828
≥10 USD $22.6204
≥100 USD $20.246424
Inventory: 54
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Flanges, Panel, Wall
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum, Olive Drab Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series MIL-DTL-26482 Series I, PT
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 6
Color Olive Drab
Applications Aerospace, Industrial, Instrumentation, Mass Transit, Military
Gender Receptacle
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 6
Orientation N (Normal)
Shielding Unshielded
Current Rating 7.5A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 10-6
Approval Agency UL
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Plating Cadmium, Chromate
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Body Plating Cadmium
Dimensions
Diameter 18.2mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
