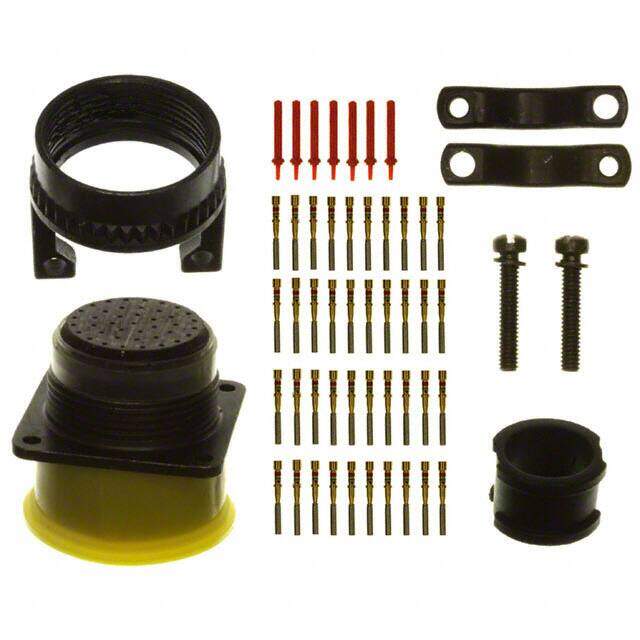

MS3120F20-41S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 41POS GOLD CRIMP
PDF
/
Buying Options
Total Price: USD $97.06
Unit Price: USD $97.056148
≥1 USD $97.056148
≥10 USD $91.562398
≥100 USD $86.379627
≥500 USD $81.490215
≥1000 USD $76.877557
Inventory: 9664
Minimum: 1
-
+
Technical Details
Compliance
Ratings Environment Resistant
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Plating Cadmium, Chromate
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert 20-41
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 7.5A
Ingress Protection Environment Resistant
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 41
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Additional Feature STANDARD: MIL-C-26482, COMPATIBLE CONTACT: M39029/32-259, POLARIZATION AVAILABLE
Gender Receptacle
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 41
Connector Type Receptacle, Female Sockets
Termination Crimp
Part Status Active
Feature Backshell, Cable Clamp
Series Military, MIL-DTL-26482 Series I, PT
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Backshell Material, Plating Aluminum, Olive Drab Chromate over Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Insulation Material Rubber
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel, Wall
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
