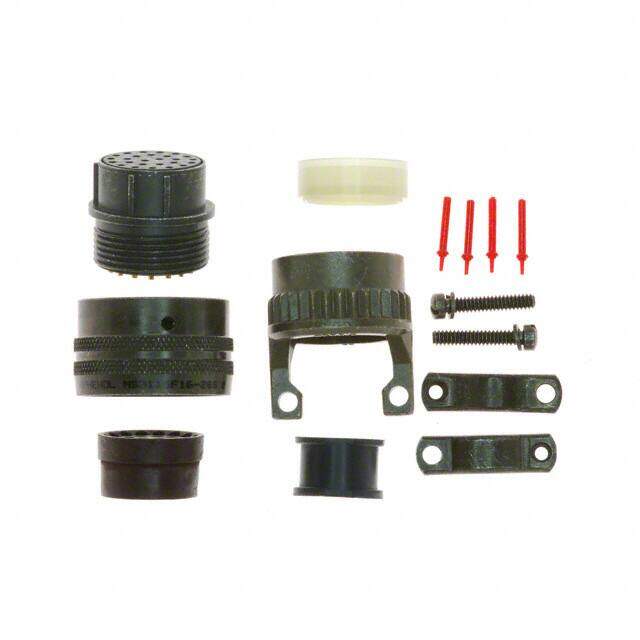

MS3116F16-26S
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 26P #20 SKT CONTACTS
PDF
/
Buying Options
Total Price: USD $94.79
Unit Price: USD $94.7936
≥1 USD $94.7936
≥10 USD $86.99064
≥100 USD $83.645056
Inventory: 49
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 32 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Insulation Material Rubber
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum, Olive Drab Chromate over Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-26482 Series I, PT
Feature Backshell, Cable Clamp, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Female Sockets
Number of Positions 26
Color Olive Drab
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Voltage - Rated 600V
HTS Code 8536.69.40.20
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 26
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Current Rating 5A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 16-26
Approval Agency UL
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Plating Cadmium, Chromate
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Ratings Environment Resistant
