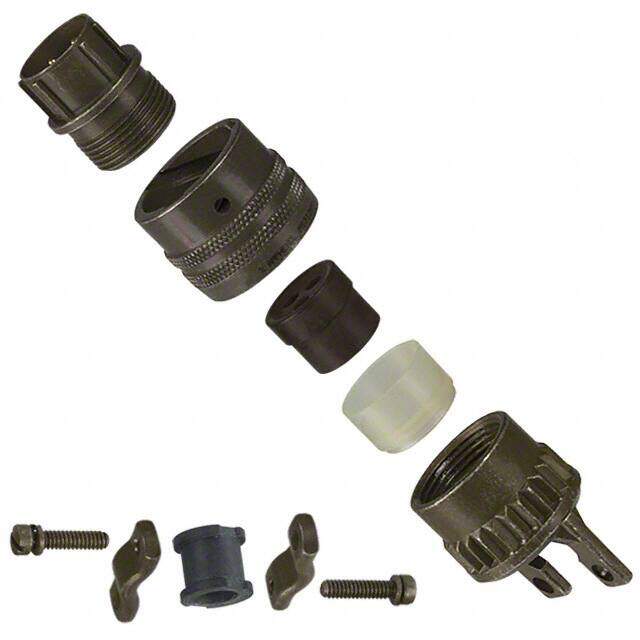

MS3116F12-3P
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 3P #16 PIN CONTACTS
PDF
/
Buying Options
Total Price: USD $45.56
Unit Price: USD $45.5576
≥1 USD $45.5576
≥10 USD $41.80352
≥100 USD $40.195936
≥500 USD $38.856048
≥1000 USD $36.712368
Inventory: 85
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 32 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Insulation Material Rubber
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum, Olive Drab Chromate over Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-26482 Series I, PT
Feature Backshell, Cable Clamp, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 3
Color Olive Drab
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Voltage - Rated 1kV
Additional Feature STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 3
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Reach Compliance Code unknown
Current Rating 10A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 12-3
Voltage - Rated AC 1kV
Approval Agency UL
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Plating Cadmium, Chromate
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 16 AWG
Compliance
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Ratings Environment Resistant
