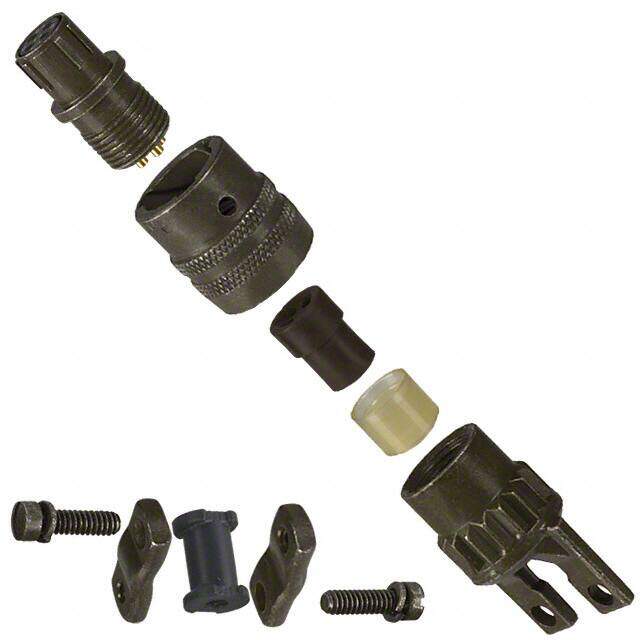

MS3116F-8-4S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 4POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $61.47
Unit Price: USD $61.468
≥1 USD $61.468
≥10 USD $56.4036
≥100 USD $54.234752
≥500 USD $52.426704
≥1000 USD $49.534232
Inventory: 169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum
Insert Material Neoprene
Backshell Material, Plating Aluminum, Olive Drab Chromate over Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-26482 Series I, PT
Feature Backshell, Cable Clamp, Coupling Nut
Part Status Active
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 4
Color Olive Drab
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 8-4
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Backshell Type SOLID
Compliance
RoHS Status Non-RoHS Compliant
