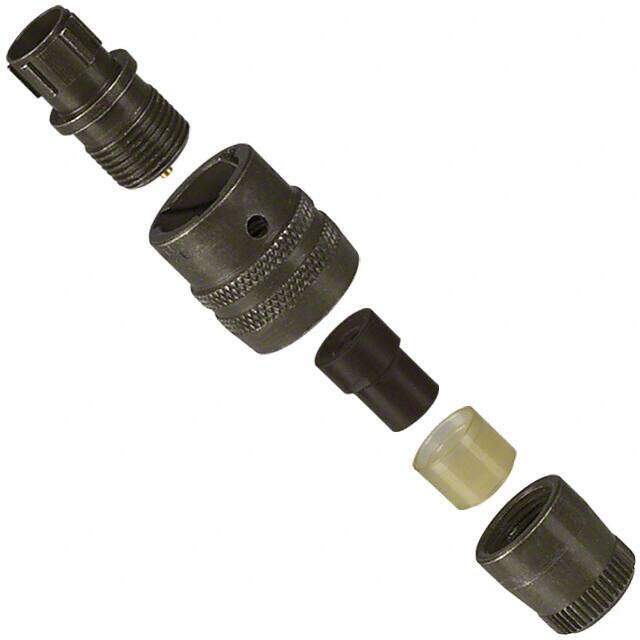

MS3116E8-3P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 3P #20 PIN CONTACTS
PDF
/
Buying Options
Total Price: USD $48.83
Unit Price: USD $48.825262
≥1 USD $48.825262
≥10 USD $46.061569
≥100 USD $43.454309
≥500 USD $40.994637
≥1000 USD $38.674181
Inventory: 7176
Minimum: 1
-
+
Technical Details
Technical
Published 2005
Series Military, MIL-DTL-26482 Series I, PT
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 3
Color Olive Drab
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Voltage - Rated 600V
Additional Feature STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
Packaging Bulk
Operating Temperature -55°C~125°C
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Plating Cadmium, Chromate
Contact Style Pin
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert 8-3
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 7.5A
Ingress Protection Environment Resistant
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 3
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
Physical
Backshell Material, Plating Aluminum, Olive Drab Chromate over Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Insulation Material Rubber
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 32 Weeks
Compliance
Ratings Environment Resistant
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
