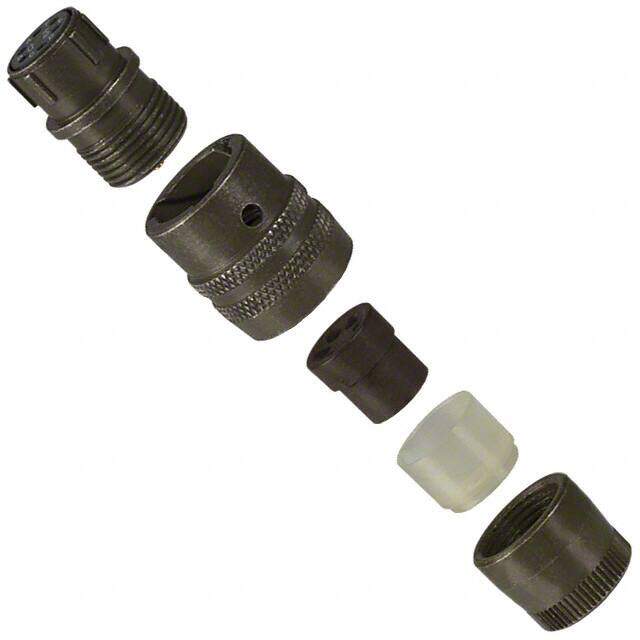

MS3116E10-6S
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 6P #20 SKT CONTACTS
PDF
/
Buying Options
Total Price: USD $18.66
Unit Price: USD $18.6648
≥1 USD $18.6648
≥10 USD $17.9872
≥100 USD $17.3536
≥500 USD $16.764
≥1000 USD $15.9544
≥3000 USD $14.7576
Inventory: 181
Minimum: 1
-
+
Technical Details
Compliance
Ratings Environment Resistant
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 32.2mm
Height 17.4mm
Technical
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Plating Cadmium, Chromate
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Approval Agency UL
Voltage - Rated AC 600V
Shell Size - Insert 10-6
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 5A
Ingress Protection Environment Resistant
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 6
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Voltage - Rated 600V
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 6
Connector Type Plug, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Backshell, Coupling Nut
Series Military, MIL-DTL-26482 Series I, PT
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Backshell Material, Plating Aluminum, Olive Drab Chromate over Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Insulation Material Rubber
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 32 Weeks
