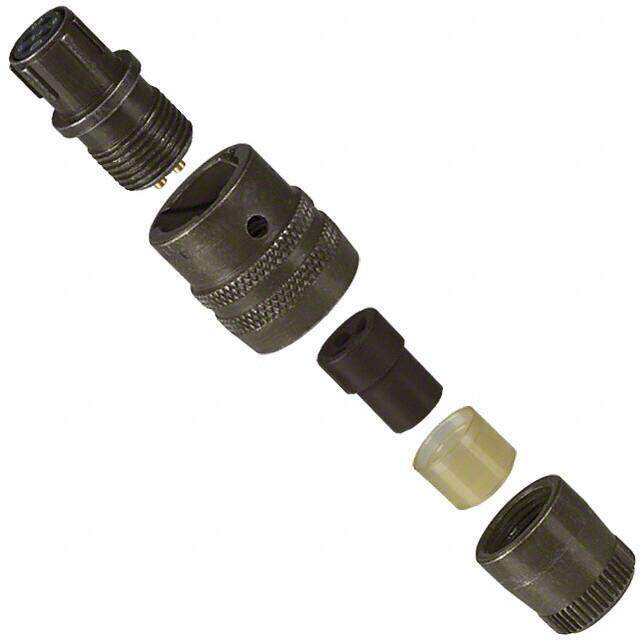

MS3116E-8-4S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG FMALE 4POS SOLDER CUP
PDF
/
Inventory: 8618
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Backshell Type SOLID
Empty Shell NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert 8-4
Shell Finish Olive Drab Chromate over Cadmium
Ingress Protection Environment Resistant
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 4
Connector Type Plug, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Backshell, Coupling Nut
Series Military, MIL-DTL-26482 Series I, PT
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Backshell Material, Plating Aluminum, Olive Drab Chromate over Cadmium
Insert Material Neoprene
Shell Material Aluminum
Mounting Type Free Hanging (In-Line)
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
