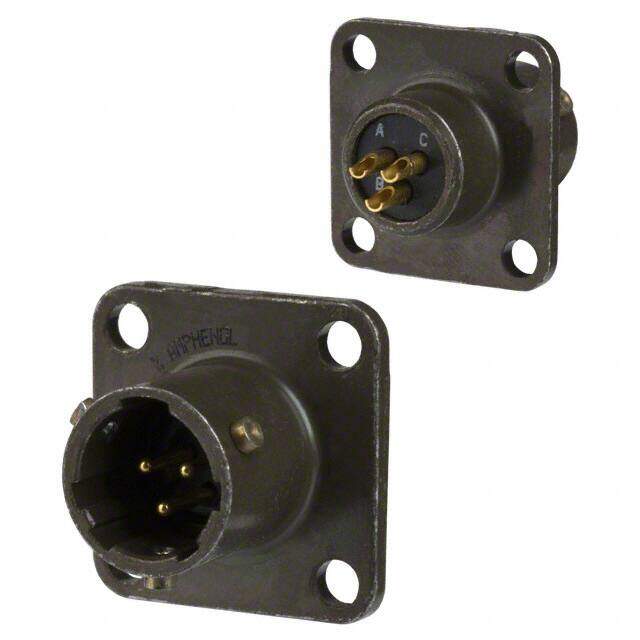

MS3112E8-3P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 3POS SOLDER CUP
PDF
/
Inventory: 6869
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Environment Resistant
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 20.62mm
Length 24.33mm
Height 20.62mm
Technical
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Plating Cadmium, Chromate
Insulation Resistance 5GOhm
Contact Style Pin
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Mating Information NO
Approval Agency UL
Voltage - Rated AC 600V
Shell Size - Insert 8-3
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 5A
Depth 20.62mm
Ingress Protection Environment Resistant
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 3
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Additional Feature STANDARD: MIL-C-26482
Voltage - Rated 600V
Gender Receptacle
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 3
Connector Type Receptacle, Male Pins
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series Military, MIL-DTL-26482 Series I, PT
Published 2004
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Shape Straight
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Insulation Material Rubber
Mounting Feature Flange
Mounting Type Panel Mount
Mount Box, Flanges, Panel
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
