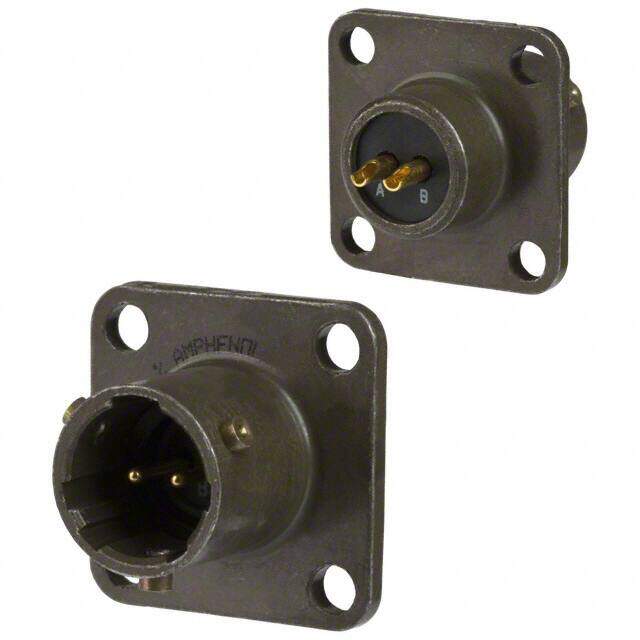

MS3112E8-2P
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT MALE 2POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $35.51
Unit Price: USD $35.508918
≥1 USD $35.508918
≥10 USD $33.498982
≥100 USD $31.60281
≥500 USD $29.813971
≥1000 USD $28.126385
Inventory: 9332
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mount Box, Flanges, Panel
Mounting Type Panel Mount
Package / Case Metal
Mounting Feature Flange
Insulation Material Rubber
Shell Material Aluminum
Insert Material Neoprene
Body Material Aluminium
Shape Straight
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-26482 Series I, PT
Part Status Active
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 2
Color Olive Drab
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Gender Receptacle
Voltage - Rated 600V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 2
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Current Rating 5A
Military Standard MIL-DTL-26482
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 8-2
Voltage - Rated AC 600V
Approval Agency UL
Mating Information NO
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Plating Cadmium, Chromate
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 20 AWG
Dimensions
Height 20.62mm
Length 24.33mm
Width 20.62mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Ratings Environment Resistant
