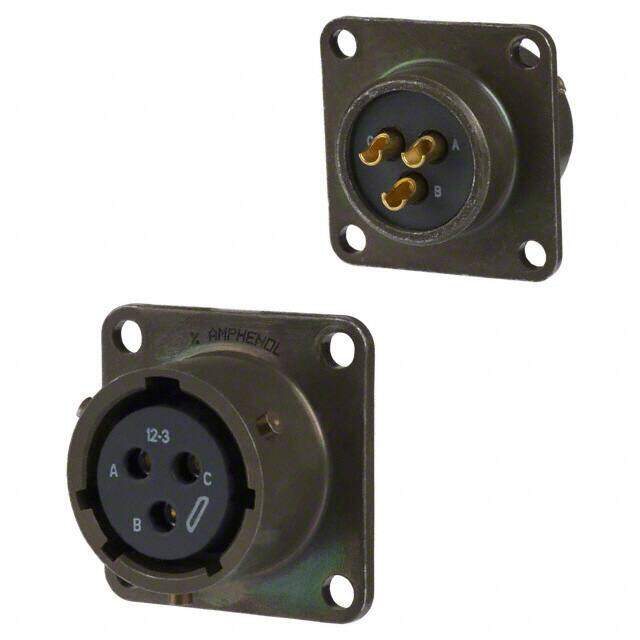

MS3112E-12-3S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Connector, Mil-C-26482 Series 1, Solder, Bayonet, Circular Military Rohs Compliant: No
PDF
/
Inventory: 7344
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Aluminum
Insert Material Neoprene
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-26482 Series I, PT
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 3
Color Olive Drab
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Additional Feature STANDARD: MIL-C-26482
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 3
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 12-3
Mating Information NO
Empty Shell NO
Backshell Type SOLID
Compliance
RoHS Status Non-RoHS Compliant
