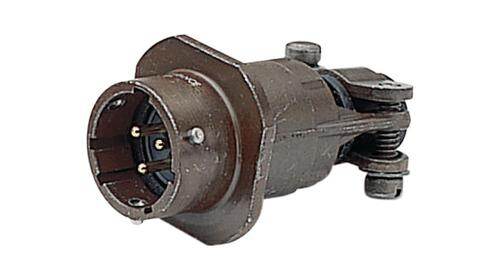

MS3111F14-12P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Olive Drab Chromate over Cadmium Military MIL-DTL-26482Series I PT Non-RoHS Compliant Environment Resistant Circular Connector 24AWG -55C~125C 13A 600V
PDF
/
Inventory: 2138
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Environment Resistant
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Diameter 23.4mm
Technical
Wire/Cable Gauge 16 AWG
Wire Gauge (Min) 20 AWG
Wire Gauge (Max) 24 AWG
Plating Cadmium, Chromate
Contact Style Pin
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Approval Agency UL
Voltage - Rated AC 600V
Shell Size - Insert 14-12
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 13A
Ingress Protection Environment Resistant
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 12
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Additional Feature STANDARD: MIL-C-26482, POLARIZATION AVAILABLE
Voltage - Rated 600V
Gender Receptacle
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 12
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Cable Clamp
Series Military, MIL-DTL-26482 Series I, PT
Published 2006
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Backshell Material, Plating Aluminum, Olive Drab Chromate over Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Mounting Type Free Hanging (In-Line)
Mount Cable, Flanges, Free Hanging
Contact Material Copper Alloy
