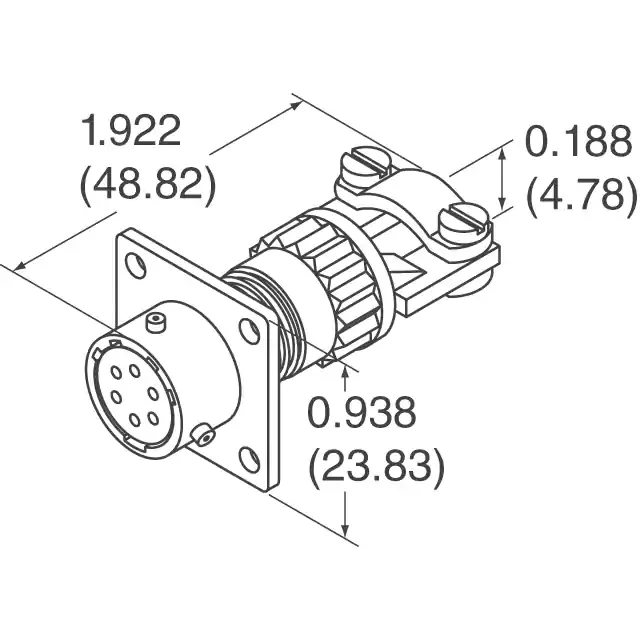

MS3110F16-8P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Olive Drab Chromate over Cadmium Military MIL-DTL-26482Series I PT Non-RoHS Compliant Environment Resistant Circular Connector -55C~125C 13A
PDF
/
Inventory: 4708
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Published 2005
Packaging Bulk
Operating Temperature -55°C~125°C
Plating Cadmium, Chromate
Contact Style Pin
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Approval Agency UL
Shell Size - Insert 16-8
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-26482
Current Rating 13A
Ingress Protection Environment Resistant
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 8
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Gender Receptacle
Applications Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military
Color Olive Drab
Number of Positions 8
Connector Type Receptacle, Male Pins
ECCN Code EAR99
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Cable Clamp
Series Military, MIL-DTL-26482 Series I, PT
Physical
Backshell Material, Plating Aluminum, Olive Drab Chromate over Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel, Wall
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
Compliance
Ratings Environment Resistant
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
