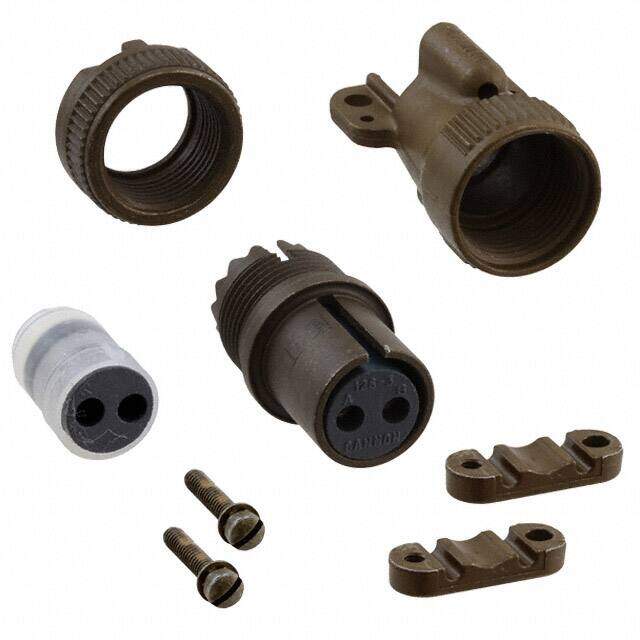

MS3106E12S-3S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Olive Drab Chromate over Cadmium MIL-5015Type Non-RoHS Compliant Environment Resistant Circular Connector 20AWG -55C~125C 13A 700V
PDF
/
Buying Options
Total Price: USD $22.54
Unit Price: USD $22.543449
≥1 USD $22.543449
≥10 USD $21.267405
≥100 USD $20.063596
≥500 USD $18.927916
≥1000 USD $17.856525
Inventory: 8156
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold, Silver
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series MIL-5015 Type
JESD-609 Code e4
Feature Backshell, Cable Clamp, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 2
Color Olive Drab
Applications Marine, Military
Voltage - Rated 700V
Additional Feature STANDARD: MIL-5015, COMPATIBLE CONTACTS: 10-597107-171; 10-597107-161
Fastening Type Threaded
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 2
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Current Rating 13A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 12S-3
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Environmental Characteristics CORROSION/ENVIRONMENT/MOISTURE/VIBRATION RESISTANT
Plating Cadmium, Chromate
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 16 AWG
Body Plating Cadmium
Cable Opening 0.281 (7.14mm)
Dimensions
Length 54.07mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
