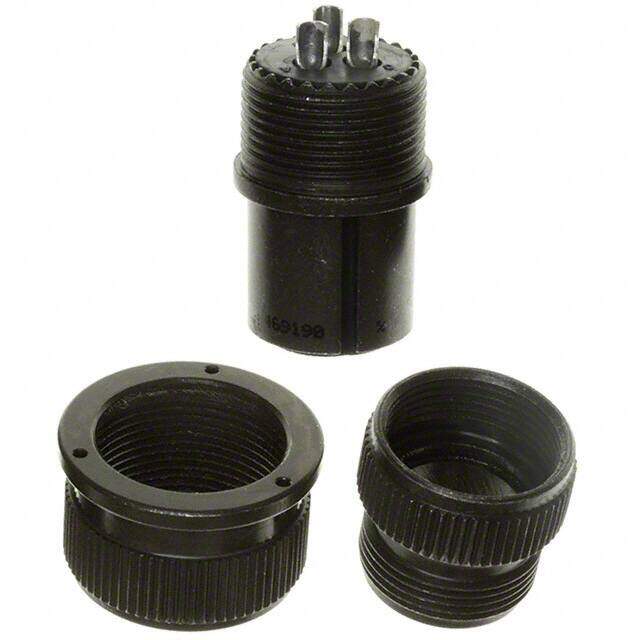

 MS3106A16-10S image
Favorite
 MS3106A16-10S image
Favorite
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description Circular MIL Spec Connector 3P #12 SKT CONTACTS
PDF
/
Buying Options
Total Price: USD $20.01
Unit Price: USD $20.009912
≥1 USD $20.009912
≥10 USD $18.877275
≥100 USD $17.808753
≥500 USD $16.800714
≥1000 USD $15.849727
Inventory: 1199
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length 46.81mm

Technical

Body Plating Cadmium
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 14 AWG
Plating Cadmium, Chromate
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Voltage - Rated AC 714mV
Shell Size - Insert 16-10
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-5015
Current Rating 23A
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 3
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Silver
Fastening Type Threaded
Voltage - Rated 700V
Applications Marine, Military
Color Olive Drab
Number of Positions 3
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell, Coupling Nut
Series MIL-5015 Type
Published 2001
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Body Material Aluminium
Insert Material Neoprene
Shell Material Aluminum Alloy
Insulation Material Rubber
Package / Case Metal
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 12 Weeks
