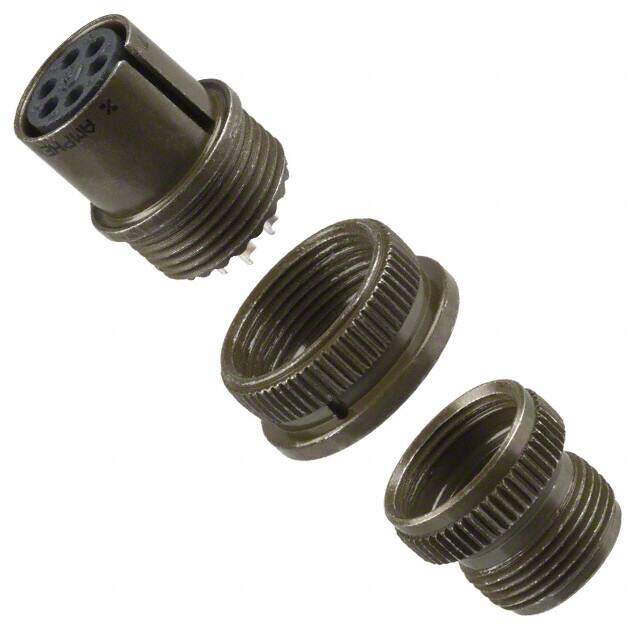

MS3106A-14S-6S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Olive Drab Chromate over Cadmium MIL-5015Type Non-RoHS Compliant 2005 Circular Connector -55C~125C
PDF
/
Buying Options
Total Price: USD $13.71
Unit Price: USD $13.7104
≥1 USD $13.7104
≥10 USD $12.14928
≥100 USD $11.682176
≥500 USD $11.214896
≥1000 USD $10.591856
≥3000 USD $9.657261
Inventory: 86
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Insert Material Neoprene
Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series MIL-5015 Type
JESD-609 Code e4
Feature Backshell, Coupling Nut
Part Status Active
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 6
Color Olive Drab
Applications Marine, Military
Additional Feature STANDARDS: MIL-DTL-5015; MIL-5015
Fastening Type Threaded
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 6
Orientation N (Normal)
Shielding Unshielded
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 14S-6
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Backshell Type SOLID
Environmental Characteristics CORROSION RESISTANT
Compliance
RoHS Status Non-RoHS Compliant
