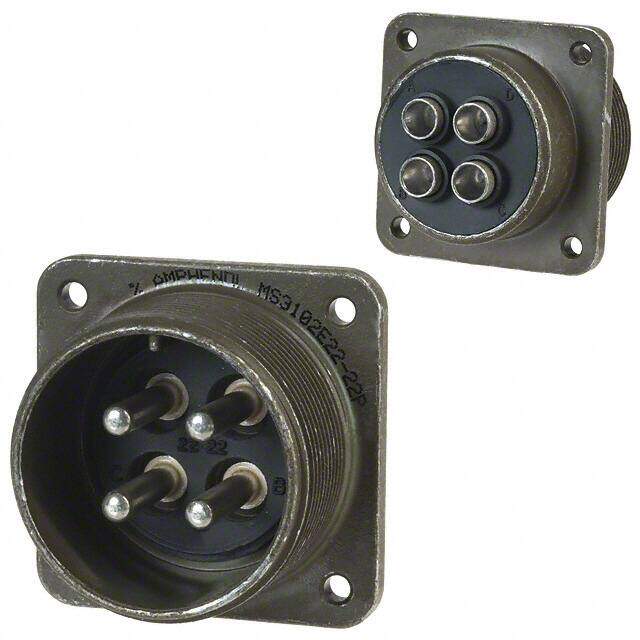

MS3102E22-22P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Olive Drab Chromate over Cadmium MIL-5015Type Non-RoHS Compliant Environment Resistant Circular Connector 10AWG -55C~125C 46A 700V
PDF
/
Buying Options
Total Price: USD $13.04
Unit Price: USD $13.0416
≥1 USD $13.0416
≥10 USD $11.30272
≥100 USD $10.933824
Inventory: 217
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Box, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Insulation Material Rubber
Shell Material Aluminum Alloy
Insert Material Neoprene
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2001
Series MIL-5015 Type
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Male Pins
Number of Positions 4
Color Olive Drab
Applications Marine, Military
Gender Receptacle
Voltage - Rated 700V
Additional Feature STANDARD: MIL-C-5015, COMPATIBLE CONTACT: 10-35531
Fastening Type Threaded
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Depth 41.27mm
Current Rating 46A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 22-22
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Plating Cadmium, Chromate
Wire Gauge (Max) 10 AWG
Wire Gauge (Min) 8 AWG
Body Plating Cadmium
Cable Opening 1.250 (31.75mm)
Dimensions
Diameter 31.8mm
Length 38.91mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Ratings Environment Resistant
